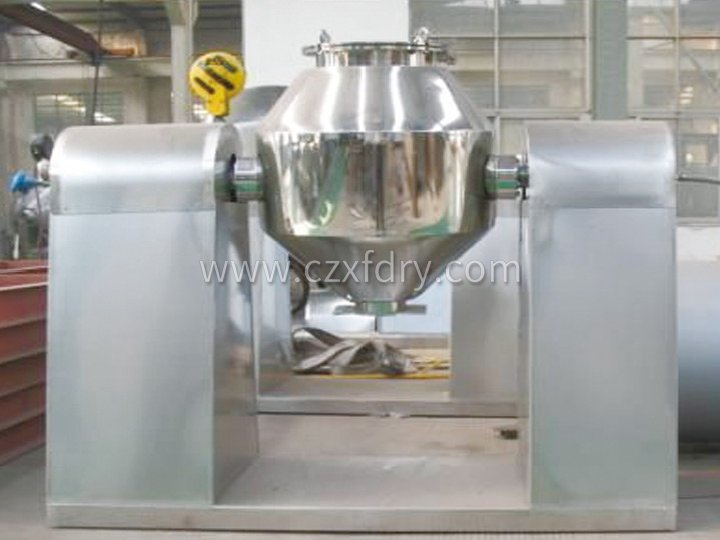

SZH series double cone mixer

Performance characteristics

This machine transfers powder or granular materials through vacuum transportation or manual feeding into a double cone container. As the container continues to rotate, the materials undergo complex impact movements in the container, achieving uniform mixing.

This machine saves energy, is easy to operate, has low labor intensity, and high work efficiency.

Adapt to materials

This machine is suitable for mixing powder and granular materials in industries such as pharmaceuticals, chemicals, food, and building materials.

Technical specifications

Specifications/Projects	Total Volume L	working volume L	inventory kg	Feeding speed rpm	power kw	weight kg
0.05	50	25	15	25	0.55	500
0.15	150	75	45	20	0.75	650
0.3	300	150	90	20	1.1	820
0.5	500	250	150	18	1.5	1250
1	1000	500	300	15	3	1800
1.5	1500	750	450	12	4	2100
2	2000	1000	600	12	5.5	2450
3	3000	1500	900	9	5.5	2980
4	4000	2000	1200	9	7.5	3300
5	5000	2500	1500	8	7.5	3880
6	6000	3000	1800	8	11	4550
8	8000	4000	2400	6	15	5200
10	10000	5000	3000	6	18.5	6000
