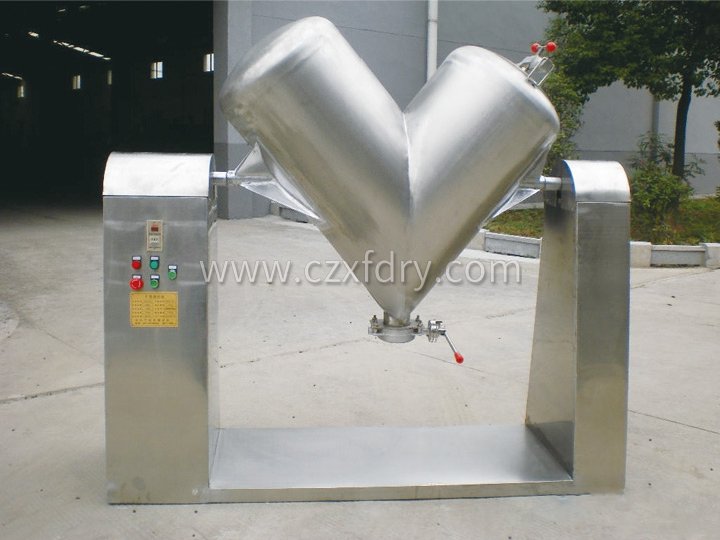

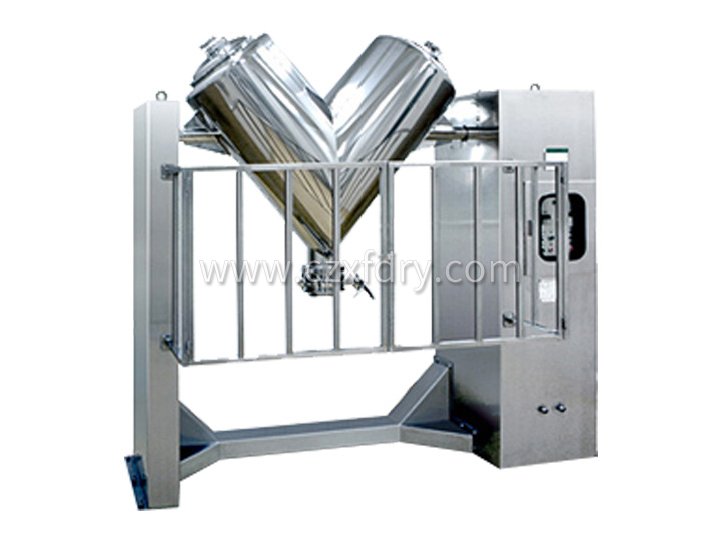

ZKH (V) series mixer

Category: Mixing equipment

Introduction: Performance characteristicsThe mixing cylinder has a unique structure, high mixing efficiency, no dead corners, made of stainless steel material, polished inner and outer walls, beautiful appearance, uniform mixing, and a wide range of applications.Ad…

+86-139-150-18670

Inquire

Details Photos

Performance characteristics

The mixing cylinder has a unique structure, high mixing efficiency, no dead corners, made of stainless steel material, polished inner and outer walls, beautiful appearance, uniform mixing, and a wide range of applications.

Adapt to materials

This machine is used for mixing dry material particles in industries such as medicine, chemical, food, metallurgy, etc.

Technical specifications

Specifications/Projects	Total Volume L	working volume L	inventory kg	Feeding speed rpm	power kw	weight kg
0.05	50	25	15	25	0.55	500
0.15	150	75	45	20	0.75	650
0.3	300	150	90	20	1.1	820
0.5	500	250	150	18	1.5	1250
1	1000	500	300	15	3	1800
1.5	1500	750	450	12	4	2100
2	2000	1000	600	12	5.5	2450
3	3000	1500	900	9	5.5	2980
4	4000	2000	1200	9	7.5	3300
5	5000	2500	1500	8	7.5	3880
6	6000	3000	1800	8	11	4550
8	8000	4000	2400	6	15	5200
10	10000	5000	3000	6	18.5	6000
