Category: Auxiliary equipment
Introduction: OverviewThe TJG series fixed lifting feeding machine consists of two parts, namely the lifting machine and the base. The elevator is composed of a frame, a hydraulic lifting system, and a material door flipping mechanism. When working, first buckle th…
+86-139-150-18670
The TJG series fixed lifting feeding machine consists of two parts, namely the lifting machine and the base. The elevator is composed of a frame, a hydraulic lifting system, and a material door flipping mechanism. When working, first buckle the material door of the elevator and the material barrel, activate the lifting lever, and the material door and the material barrel will rise together. Activate the flipping lever, and the material barrel can rotate 180 degrees to the desired position with the bottom barrel upward. By using the discharge butterfly valve on the material door, the material can be easily added to the required process equipment.
| Model specifications/parameters | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |

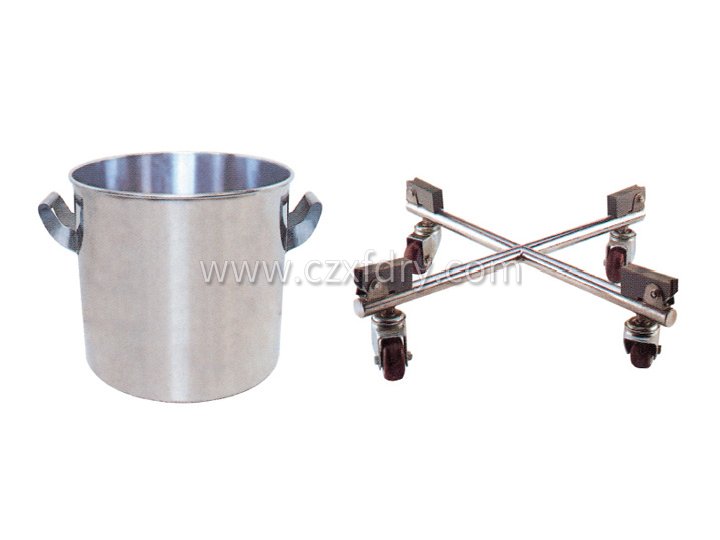

| name | content（kg） | Specification (barrel diameter × Height) | wall thickness（mm） |
| charging basket | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Bucket dedicated vehicle | 50-100 | Φ500×600 |
