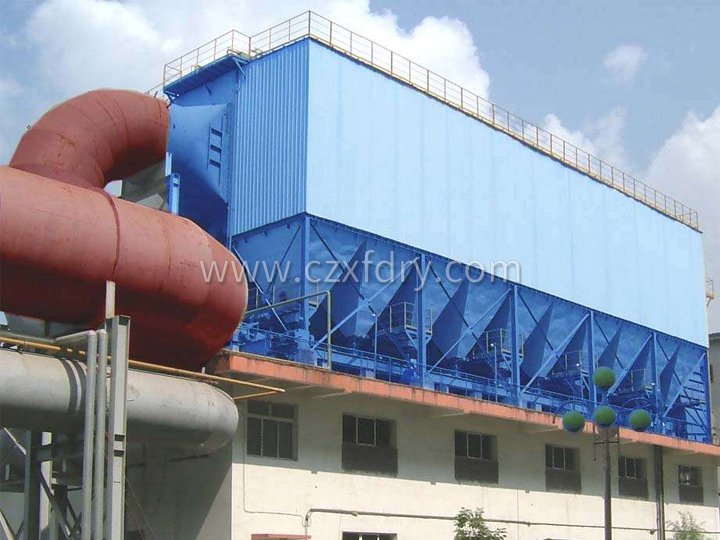

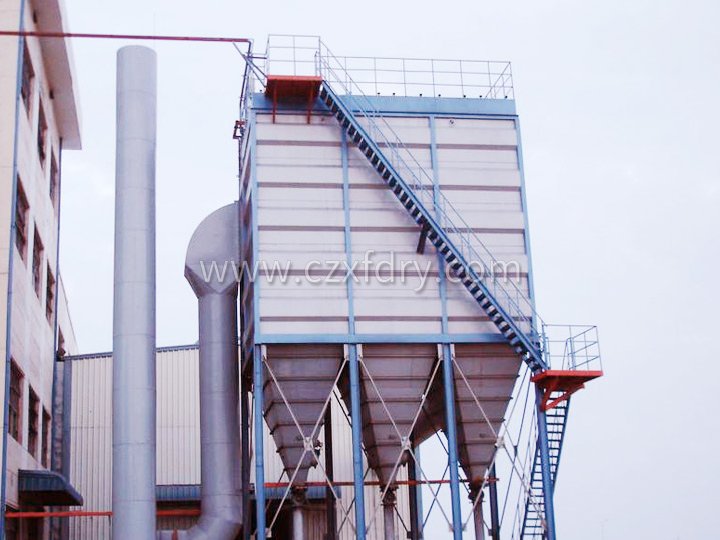

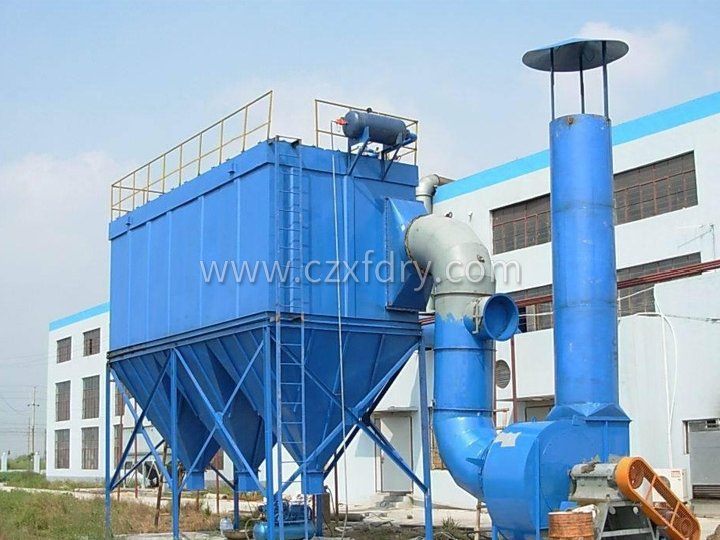

MF series pulse bag dust collector

Product Introduction

The MF II square pulse bag filter is an improved and modified version of the MF I type.

Performance characteristics

It not only has the characteristics of high dust removal efficiency, large processing air volume, stable performance, and convenient operation and maintenance of Type I, but also has the advantages of better use effect, less powder accumulation, and wide application range compared to Type I.

Adapt to materials

Widely applicable for ventilation, dust removal, and dust recovery in industries such as grain and food, feed, metallurgy and chemical engineering, building materials, and pharmaceuticals.

Technical specifications

parameter	model
	MF48	MF60	MF72	MF84	MF96	MF108	MF120
filter area（m2）	36.2	45.2	54.3	63.3	72.4	81.4	90.5
Number of filter bags (piece)	48	60	72	84	96	108	120
Filtered air volume (m3/h)	6510-8680	8130-10840	9770-13000	11400-1520	13000-17370	14650-19530	16290-21700
Number of solenoid valves (piece)	8	10	12	14	16	18	20
Power (kW)	1.1	1.1	1.1	1.1	1.5	2.2	2.2
Filter bag specification (mm)	120×2000
Filtering wind speed (m/min)	3-4
Air leakage rate (%)	≤5
Injection pressure (Mpa)	＞0.4-0.6
Equipment resistance (Pa)	＜1200
Dust removal efficiency (%)	≥99.9（Select suitable filter media based on dust characteristics）

Technical specifications

parameter	model
	MF48	MF60	MF72	MF84	MF96	MF108	MF120
A	3530	3530	3530	3530	3530	3530	3530
B	3287	3287	3287	3287	3287	3287	3287
C	2552	2552	2552	2552	2552	2552	2552
D	1160	2260	1160	1160	1160	1160	1160
E	1350	1650	1950	2250	1350	2850	3150
F	1350	1350	1350	1350	1350	1350	1350
G	635	635	635	635	635	635	635
H	325	475	625	775	925	1075	1225
I	1586	1586	1586	1586	1586	1586	1586
J	790	790	790	790	850	850	850
K	824	824	824	824	824	824	824
M×N	400×500	500×500	600×500	700×600	700×600	800×600	800×600
P×Q	432×530	530×530	630×530	728×630	728×630	832×630	832×630
R×S	1050×1050	1350×1050	1650×1050	1950×1050	2250×1050	2250×1050	2850×1050
