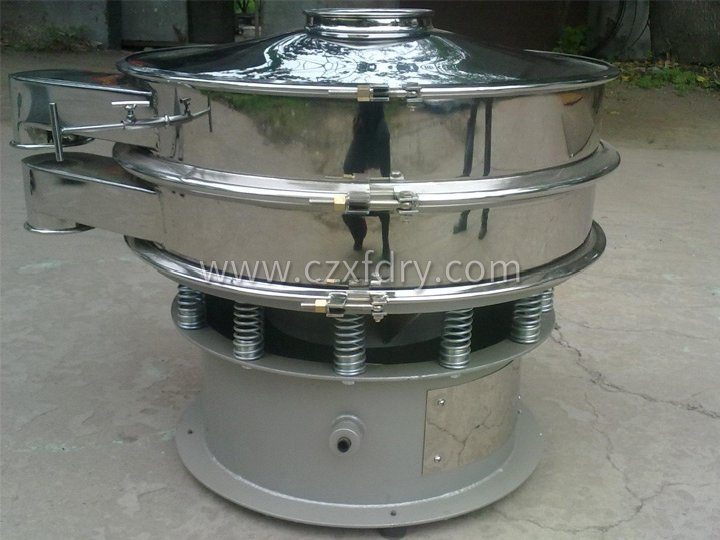

ZS series circular oscillating screen

Category: Screening equipment

Introduction: OverviewThis machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The oscillation chamber consists of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is driven by a motor to r…

+86-139-150-18670

Inquire

Details Photos

Overview

This machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The oscillation chamber consists of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is driven by a motor to reach the centerline of the main shaft, generating centrifugal force in an unbalanced state, causing changes in material strength and forming track vortices inside the screen. The amplitude of the heavy hammer adjuster can be adjusted according to different materials and screens. The entire machine has a compact structure, small size, no dust, low noise, high quality, low energy consumption, and convenient mobile maintenance.

Technical specifications

model	ZS-350	ZS-515	ZS-650	ZS-800	ZS-1000	ZS-1500
production capacity(kg/h)	40-500	60-600	80-800	150-1200	300-2000	350-2800
meshes	12-1200	12-200	12-200	12-200	5-325	5-325
power(kw)	0.55	0.55	0.55	0.75	1.5	2.2
Spindle speed(rpm)	1380	1370	1370	1500	1500	1500
Overall dimensions(mm)	540×540×1060	710×710×1290	880×880×1350	1000×1000×1000	1100×1100×1200	1600×1600×1200
net weight(kg)	100	180	250	300	350	400
