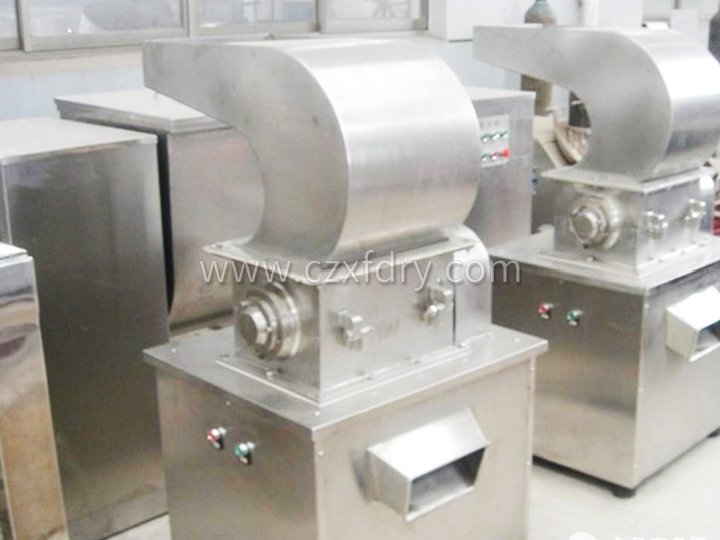

CSJ coarse crusher

Category: Crushing equipment

Introduction: UsesThis machine is suitable for industries such as pharmaceuticals, chemicals, metallurgy, food, and construction. Processing hard and difficult to crush materials, including crushing plastics, copper wire, Chinese herbal medicine, rubber, etc., can …

+86-139-150-18670

Inquire

Details Photos

Uses

This machine is suitable for industries such as pharmaceuticals, chemicals, metallurgy, food, and construction. Processing hard and difficult to crush materials, including crushing plastics, copper wire, Chinese herbal medicine, rubber, etc., can also be used as a supporting equipment for the pre processing of micro and micro pulverizers.

Operational principle

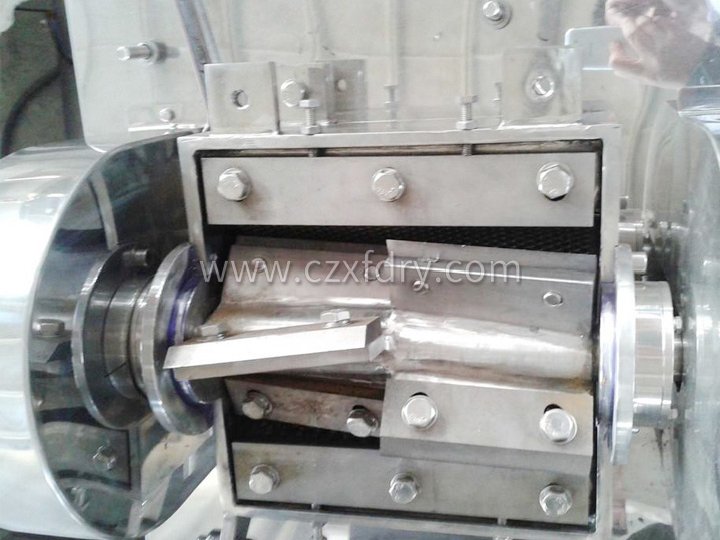

The material is sent into the crushing chamber by the feeding hopper, and is subjected to the impact of the blade and blade seat. The rotating and fixed knives shear and crush at the same time. Due to the action of the rotating centrifugal force, the material automatically flows out from the outlet.

Technical parameter

Model	CSJ-250	CSJ-500
Feed particle size	≤100	≤100
Discharge particles	0.5-20	0.5-20
Spindle speed	940	1000
power	4	11
Yield	50-300	80-800
Overall dimensions	860×650×1020	1120×1060×1050
