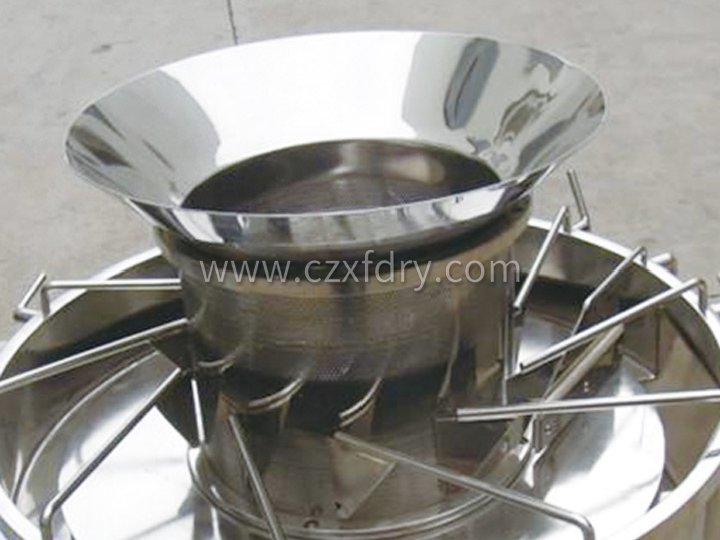

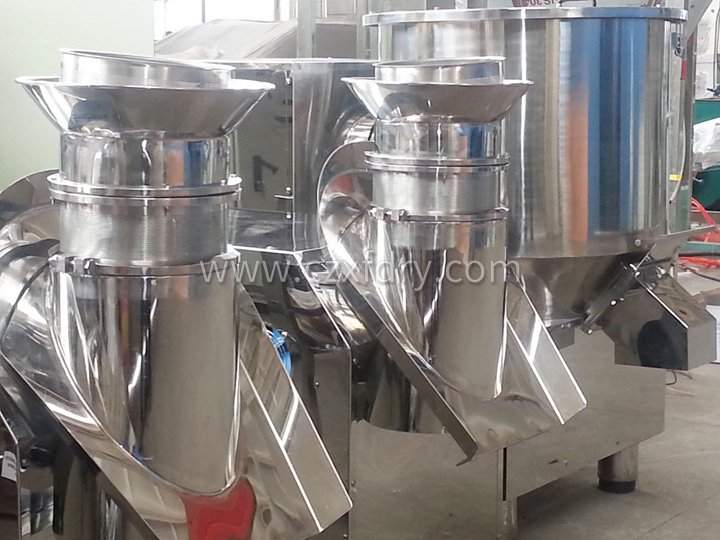

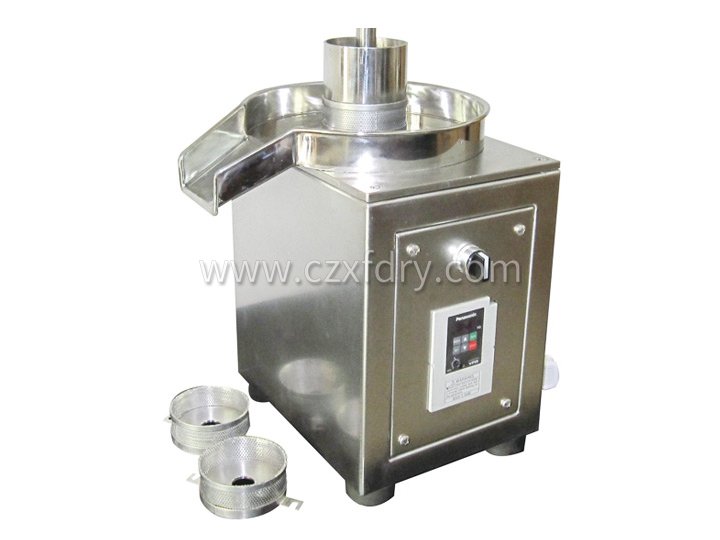

ZLB series rotary granulator

Category: Granulation equipment

Introduction: Application scopeThis machine is used in industries such as pharmaceuticals, food, granules, chemicals, solid drinks, etc., to make the required particles from stirred materials, especially suitable for materials with high viscosity.Performance charac…

+86-139-150-18670

Inquire

Details Photos

Application scope

This machine is used in industries such as pharmaceuticals, food, granules, chemicals, solid drinks, etc., to make the required particles from stirred materials, especially suitable for materials with high viscosity.

Performance characteristics

All parts of this machine that come into contact with materials are made of stainless steel, with a beautiful appearance, reasonable structure, high granulation forming rate, beautiful particles, automatic discharge, avoiding particle damage caused by manual discharge, and suitable for flow operation.

Technical specifications

Grinding knife size(mm)	250	300B	300D
particle diameter（mm）	Φ2-2.2 （Can be customized according to user needs）	Φ1.2-3 （Can be customized according to user needs）	0.5-6 （Can be customized according to user needs）
Overall dimensions（mm）	700×540×1300	880×640×1300	1300×800×1200
power（kw）	3	4	7.5-6
weight（kg）	350	400	780
production capacity（kg/h）	100-200	140-400	300-600
