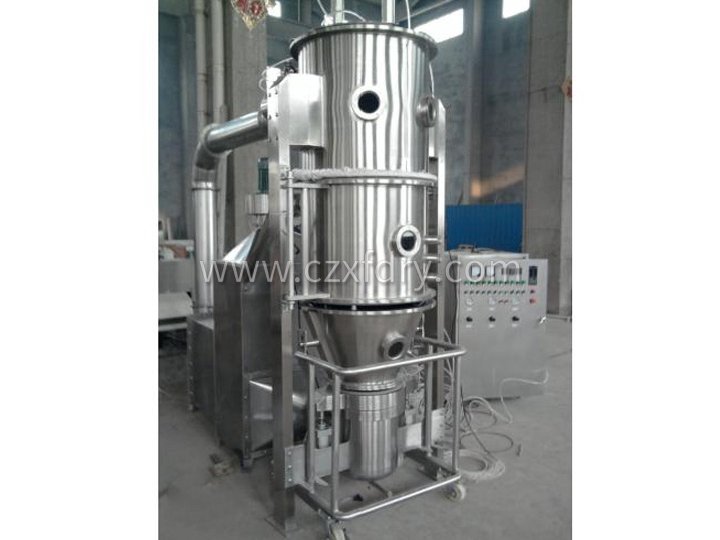

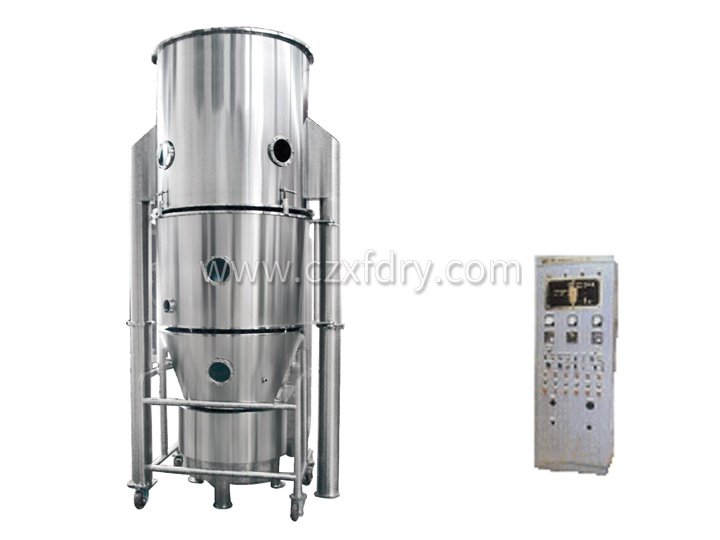

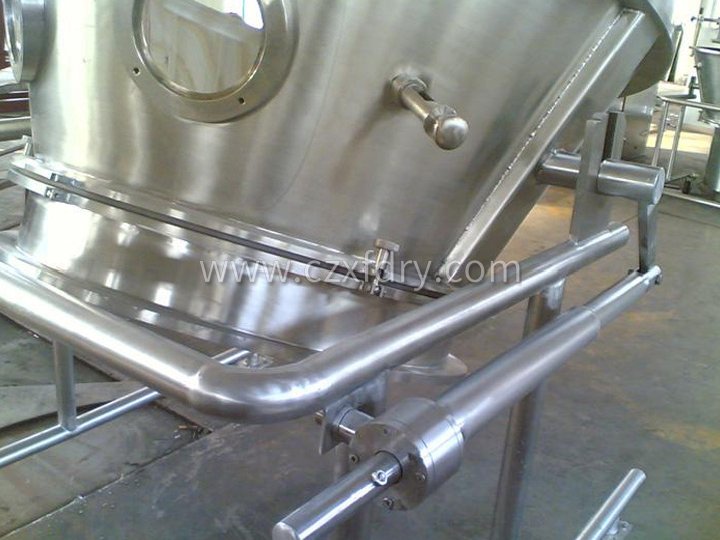

PGL series spray drying granulator

Overview

This unit is a device that can simultaneously complete drying and granulation. According to the process requirements, the pressure, flow rate, and nozzle size of the material liquid pump can be adjusted to obtain the required spherical particles in a certain proportion of size.

The working process of this unit involves high-pressure input of the material and liquid through a diaphragm pump, spraying mist like droplets, and then descending in parallel with the hot air. Most of the powder particles are collected by the discharge port at the bottom of the tower, and the exhaust gas and its small powder are separated by a cyclone separator. The exhaust gas is discharged by an exhaust fan, and the powder is collected by a pollination cylinder located at the bottom of the cyclone separator. The fan outlet can also be equipped with a secondary dust removal device, with a recovery rate of over 96-98%.

The tower body, pipeline, and separator materials in contact with the materials of this unit are all made of SUS304. There is a sufficient moisture layer between the inside of the tower and the shell, filled with ultra-fine glass wool. The tower is equipped with observation doors, mirrors, light sources, and control instruments, which are controlled and displayed by the electrical control console.

Product Application

Pharmaceutical industry: tablets, granules, capsules and granules; Low sugar, sugar free traditional Chinese patent medicines and simple preparations granules; Food: cocoa, coffee, milk powder, granular juice, seasonings, etc; Other industries: pesticides, feed, fertilizers, pigments, dyes, etc.

Product Features

1. The drying speed is fast, and the surface area of the material liquid greatly increases after atomization. In the hot air flow, 95% -98% of the water can be instantly evaporated, and the completion time of drying only takes tens of seconds to tens of seconds. It is particularly suitable for drying heat-sensitive materials.

2. All products are spherical particles with uniform particle size, good fluidity, good solubility, high purity, and good quality.

3. Widely used, according to the characteristics of the material, it can be dried with hot air or granulated with cold air, which has strong adaptability to the material.

4. Simple and stable operation, convenient control, and easy to achieve automated operations.

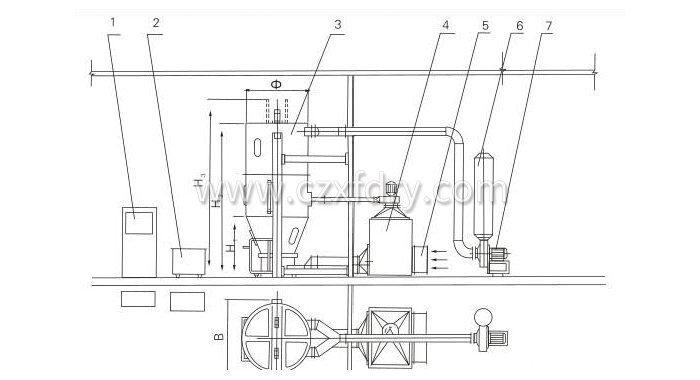

Structural diagram

1. Control cabinet 2, infusion trolley 3, host 4, heat exchange cabinet 5, sub high-efficiency filter 6, muffler 7, induced draft fan

Technical Parameter

project		Unit/Model	PGL-3B	PGL-5B	PGL-10B	PGL-20B	PGL-30B	PGL-80B	PGL-120B
Unit/Model	min	kg/h	2	4	5	10	20	60	100
	max	kg/h	4	6	15	30	40	100	140
Boiling ability	min	kg/批	2	6	10	30	60	100	150
	max	kg/批	6	15	30	80	160	250	450
Liquid specific gravity		kg/L	≤1.30
Quantity of raw material containers		L	26	50	220	420	620	980	1600
Container diameter		mm	400	550	770	1000	1200	1400	1600
Induced draft fan power		kw	3.0	5.5	7.5	11	15	18.5	30
Auxiliary fan power		kw	0.35	0.75	0.75	1.20	2.20	2.20	4
steam	Consumption	kg/h	40	70	99	210	300	366	465
	pressure	Mpa	0.40-0.60
Electric heating power		kw	9	15	21	25.5	51.5	60	75
compressed air	Consumption	m3/min	0.5	0.8	0.8	0.9	1.1	1.3	1.8
	pressure	Mpa	0.40-0.60
Operating temperature		°C	Room temperature -160 ° C automatic adjustment
Product moisture		%	≥0.2
Material yield		%	≥99
Equipment noise		dB	<77
Host size	Φ	mm	400	550	770	1000	1200	1400	1600
	H1	mm	940	1050	1070	1220	1570	1590	1690
	H2	mm	1900	2360	2680	3150	3630	4120	5050
	H3	mm	2050	2590	3020	3600	4180	4770	5800
	B	mm	740	890	1110	1420	1620	1820	2100

Selection example: It is required that the processing flow extract amount I=120kg (with a solid content of 30%) and seed amount II=60kg in each batch. The theoretical finished product amount M=mI+mII=120kgx30%+60kg=96kg can be obtained from I and II, and the working time T=120kg/30kg/h=4h. The boiling amount can be found in the technical parameter column as the standard load range. Therefore, it is more suitable to choose PGL-30 type for completing two batches per shift.
